OpenLineage

OpenLineage is an open platform for collection and analysis of data lineage. See openlineage.io for more information.

Polars acts as an OpenLineage producer — it emits RunEvent and optionally DatasetEvent when a query executes. Job identity (JobEvent) must be provided by the caller, typically an orchestrator such as Airflow or Dagster.

Setup

At a minimum, three components are required:

  1. A Polars cluster configured with lineage transport
  2. A Polars query annotated with job metadata via with_lineage()
  3. A lineage collector (e.g., Marquez)

Optionally, an orchestrator will submit the queries and take on the responsibility for annotation.

Transport configuration

The cluster must be configured with a lineage transport endpoint, pointing at the collector. HTTP(S) is the only supported transport protocol. The following example points at a local instance of Marquez.

[lineage]
enabled = true
transport.http.endpoint = "http://localhost:5000"

Query annotation

Each query must be annotated with Job metadata through the with_lineage() API. At a minimum, both the job_namespace and job_name must be provided.

For example:

query = (
    pl.concat(
        [
            pl.scan_csv(src1),
            pl.scan_csv(src2),
        ],
        how="horizontal",
    )
    .remote(context=ctx)
    .with_lineage(
        job_namespace="prod",
        job_name="demo.job1"
    )
    .sink_parquet(dst)
)

Additional metadata, such as Parent Run metadata can be added, see with_lineage() in the Polars cloud API reference for details.

Running and collecting

Running the query will emit openlineage events and send them to the collector. Polars is responsible for generating the unique runId for any given query. The collector will collect the events for analysis, correlation, and visualization purposes.

For example, Marquez visualizes the above query as follows, by default at http://localhost:3000,

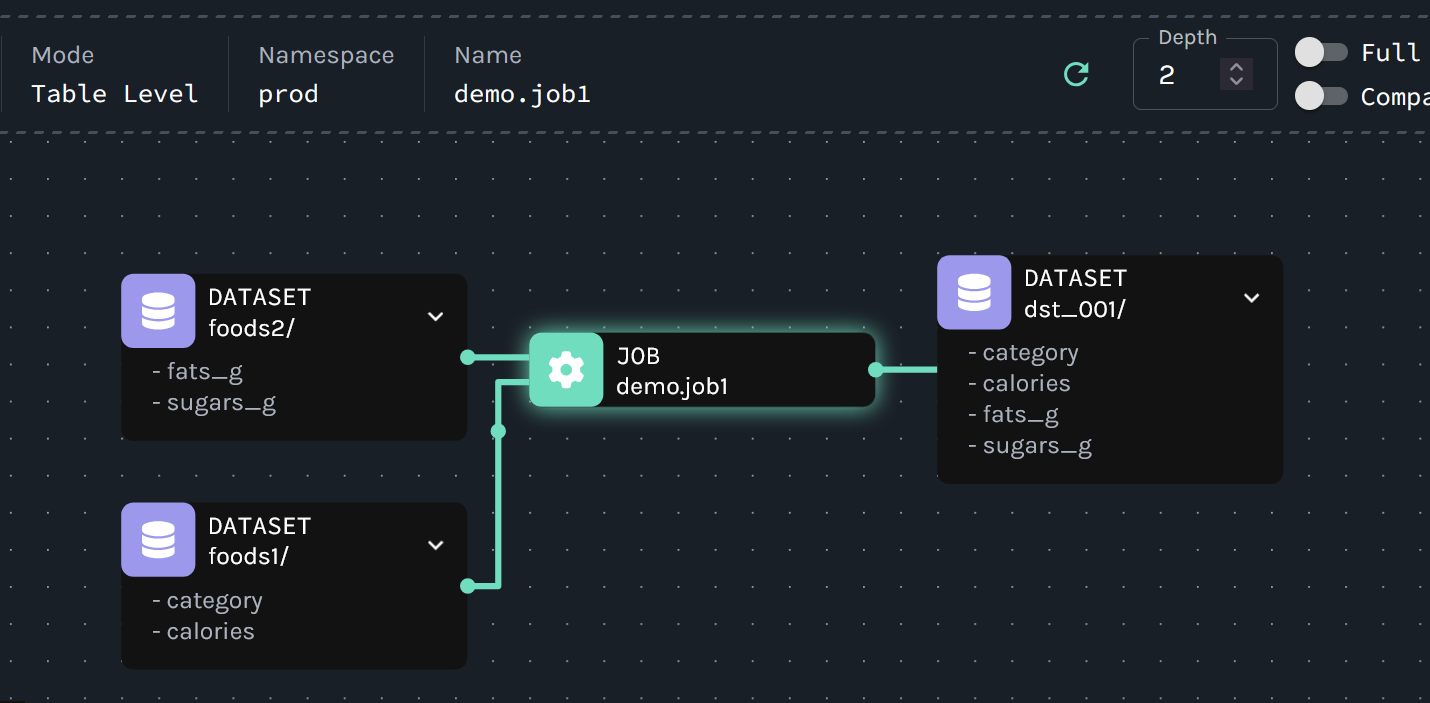

lineage jobs

and lists the collected events.

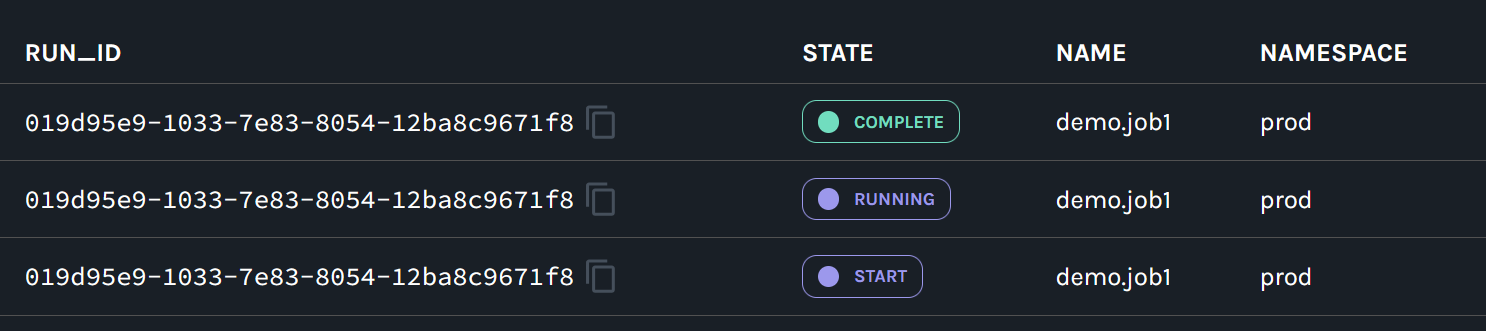

lineage events

For more information, consult the documentation of your collector.

Dataset naming

Polars strives to align with the DataSet naming convention. However, it may deviate when there is a better way to capture the logical identity of the dataset, e.g. when using cloud-based prefixes for multi-file stores, single-file datasets in cloud context, glob patterns, or hive partitioning.

This aspect of the implementation is unstable.

Supported facets

OpenLineage is extensible through the use of facets. In addition to the core RunEvent and optional DatasetEvent, Polars supports the following facets:

  • Run Facets
  • Error Message Facet
  • Parent Run Facet
  • Dataset Facets
  • Schema Dataset Facet
  • Output Statistics Facet
